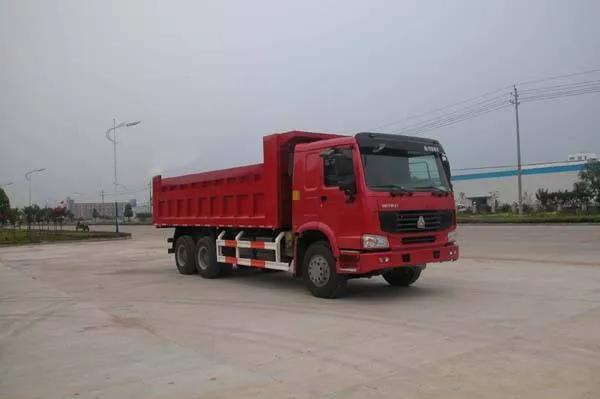

Construction Dump Tipper for Minery Mining Construction Truck

Place of Origin : CHINA

Brand Name : CLW

MOQ : 1

Price : 15000-35000 per unit

Load Capacity : 31-40t

Drive Wheel : 6×4

Engine Capacity : ＞8L

Horsepower : 310HP-385HP

Tire Design : Tubeless

Thickness of The Box : Side 8mm, Bottom 10mm

Engine : 336HP, 371HP, 380HP

Lifting Type : Front Lifting, Middle Lifting

Usage : Transportations of Mineral, Stone, Sand, and So on

Certificate : ISO, CCC, BV, SGS

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Specification : 8860x2500x3450mm

HS Code : 8705909090

Production Capacity : 500pieces/Month

Name : Tipper Dump Truck

Model Number : CLW

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Model NO. : CLW6688ZXCA05

Emission Standard : Euro 2

Seats : ≤5

Tire Certification : ECE, GCC, ISO

Dumping Type : Middle and Front Lifting Style

Condition : New

Delivery Time : 35 Days

Tire : Radial Tire 12.00r20 or Tubeless Tire 12r22.5

Dump Material : Carbon Steel Q235

Oil Cylinder Brand : International Brand Hyva or Chinese Brand

Color : as Customer's Request

Testing : Products Inspection Before Shipment

Warrenty : 1 Year

Trademark : CLW

Origin : Suizhou, China

Contact Now

6X4 HOWO LHD 30tons 35tons 18cbm Construction Dump Tipper for Minery Mining Construction Truck

Product description:

Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,FOTON...

Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.

Used in construction site for transportation of mineral,stone,sand and so on.

Specification of dump truck:

Condition	New condition/Left hand drive/6x4
Chassis	Brand		SINOTRUK
	Model		HOWO
	Curb weight(kg)		12400 kg
	Axle loading(Front/Rear)(kg)		7000/16000/16000kg
	Wheelbase(mm)		3800+1350 mm
	Dimensions(mm)		856024903430 mm
	Wheel track (front/rear) (mm)		2036/1860/1860 mm
	Front/Rear overhang(mm)		1525/1660 mm
	Approach/Departure angle(°)		28/18
	Max. driving speed(km/h)		95 km/h
	Clutch		Reinforced diaphragm clutch
	Fuel tank volume(L)		300 L
	Brakes		Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels. Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10pcs with one spare tire
		Specifications	12R22.5
Transmission	Manual type, 10 Forwards and 2 reverses
Cabin	It can accommodate three people, With Air conditioner.
Engine	Brand		SINOTRUK
	Fuel type		Diesel
	Displacement(ml)		9726 ml
	Power(kw)		235 kw
	Horsepower(HP)		310-385 HP
	Cylinder number		6
	Emission standard		Euro 2
Upper	Size(mm)		540023001600 mm
	Max. Loading weight(kg)		35 tons
	Button Thickness(mm)		8.0 mm
	Side plate Thickness(mm)		6.0 mm
	Material		Q235 Carbon steel
	Tipping type		Middle Tipping
	Oil cylinder brand		China local brand
	Oil cylinder size(mm)		220 mm
Remarks	1. Color is optional

Construction Dump Tipper for Minery Mining Construction Truck
