Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck

Place of Origin : CHINA

Brand Name : CLW

Campacting Ratio : 0.6-0.8 Ton/Cbm

Drive Wheel : 4×2

Compression Cycle Time : 25-30 S

Garbage Box Capacity : 4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.

Name : Garbage Truck

Volume : 10001-15000L

Transmission Type : Manual

Brand : Dongfeng

Condition : New

Unload Garbage Time : No More Than 40 S

Garbage Box Thickness : Side 3mm, Bottom 4mm, Carbon Steel-Q345A

Compression Ratio : 3-4

Chassis Brand : Dongfeng, Foton, Sinotruk, JAC, etc.

Origin : Suizhou, China

Production Capacity : 500 Unit/Month

Usage : Garbage Removal and Collection

Certification : ISO9000, CCC, CE

MOQ : 1

Price : 15000-35000 per unit

HS Code : 8705909090

Emission Standard : Euro 3

Garbage Box Volume : 5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc

Models : Medium

Controlling Way : Manual and Electrical Control

Trademark : CLW

Transport Package : Naked Pack with Wax

Model Number : CLW

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Payload : 12 Ton

Specification : 8350*2490*3250 (mm)

Model NO. : CLW5107CZB

Fuel : Diesel

Hydraulic Pressure : 19.6/200 MPa/Kg

Contact Now

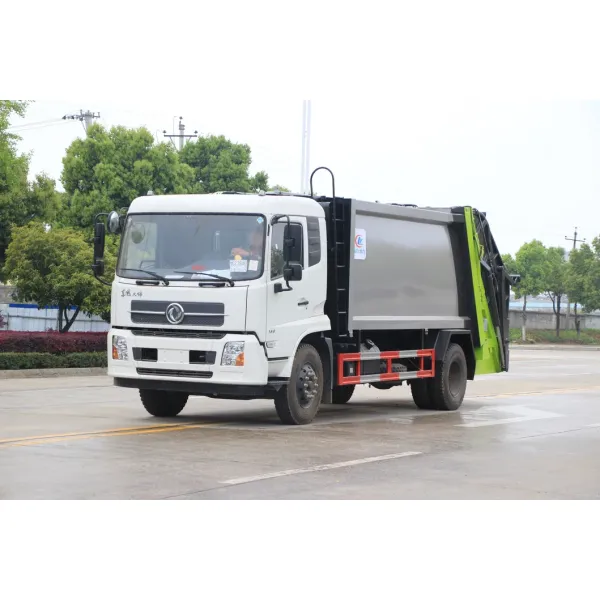

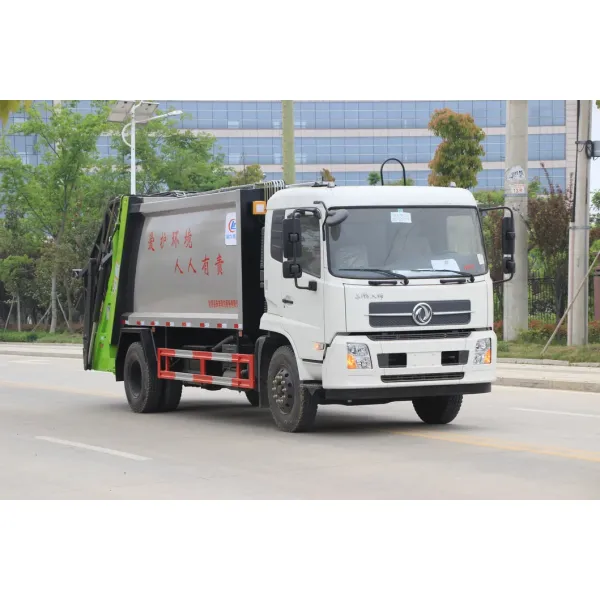

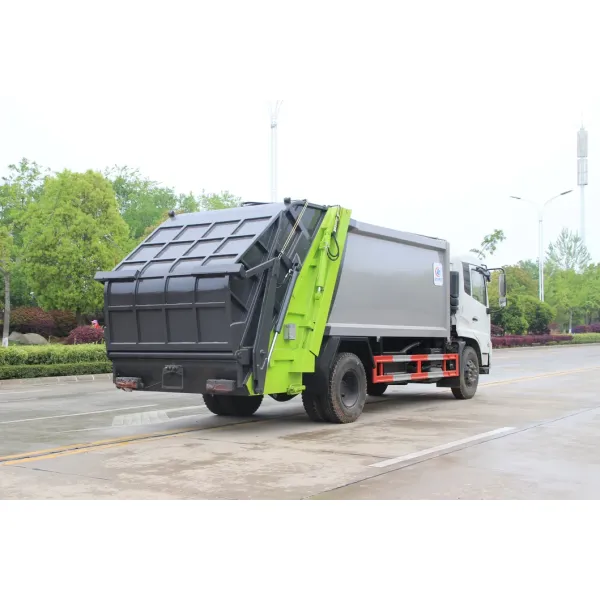

Dongfeng 4*2 Self Compressing Garbage Compactor Removal Truck

Product Description

Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
Easy Full Automatic Operation: electrical control system for loading and unloading operations.
One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specification

Chassis Specification
Truck model			CLW
Cab			Dongfeng standard cab without A/C
Driving Type			4*2 Left hand driving
Max Speed (km/h)			90
Overall dimension(mm)			8325×2490×3250
GVW( kg)			15800
Mass in working order ( kg)			9800
Tank Capacity (L)			15000L
Wheelbase(mm)			4700
F/R track base (mm)			1910/1800
F/R overhang (mm)			1430/2420
Approach/Departure Angel			20/18(°)
Tire			10.00R20
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			6 speed
Bridge	Front axle		6000
	Rear axle		10000
Engine	Model		B190 33
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)		5900
	Max output power/rotate speed (hp /rpm )		190
Braking system			Full air
Eletric system			24v

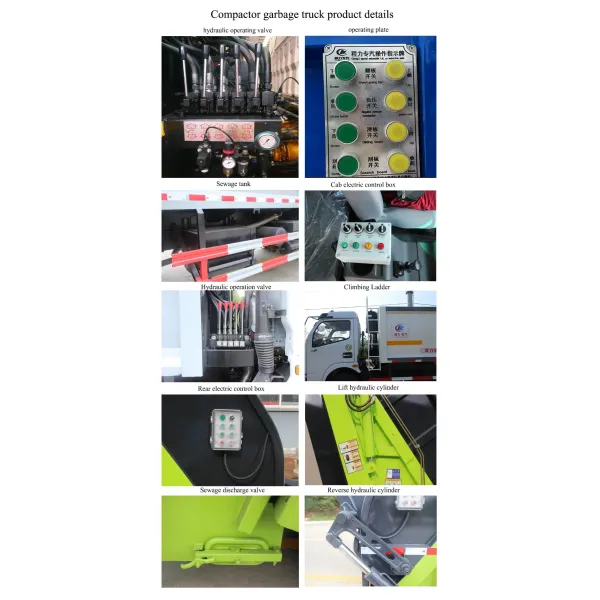

Upperstructure Specification
Loading Circulation Time (s)		25-30
Rubbish Discharging Time(s)		<=40
Oil Pressure(mpa/kg)		19.6/200
Compressed Proportion		1:3/1:2
Equipment		Equipped with hermetic dustbin, hydraulic system and operating system Automatic compress and uninstall, sewage can be collected by the dump tank. Pressure is large, leakproofness is good, operation is convenient and security is dependable
Power of movement		Hydraulic pump
Material of box		Carbon steel

Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
